A Dental Autoclave is a vital sterilization device used in dental clinics to ensure that dental instruments are free from bacteria, viruses, and other contaminants. It uses high-pressure steam and heat to eliminate harmful microorganisms, ensuring a safe environment for both patients and dental professionals. These autoclaves play a crucial role in preventing cross-contamination and maintaining infection control standards in dental practice.
Types of Autoclaves we offer:
Ningbo Runyes Medical Instrument Co. Ltd has focussed on Quality management combine with innovative designs of medical & dental equipment. The steam sterilizer has the most essential role in the clinic/hospital for sterilization of instruments and prevention of cross-contamination. Runyes has the European Class B autoclave with 23L capacity and upgraded features to make this autoclave the most reliable one.
Key Highlights
B+ Cycle for Sterilization: Prion Cycle (B+ Cycle) designed for effective sterilization.
Safety Features: Double door lock system including airlock & mechanical lock to prevent incorrect operation and potential danger.
Steam Spray Barrier to protect instruments from damage.
Efficiency and Maintenance: Water Filter in the chamber to prevent drainage pipe blockages. Steam Generator Cleaning Program enhances autoclave efficiency.
Cooling Condenser in the waste-water tank to prevent tank deformation under heat. -92 Kpa Increased Vacuum Pump Efficiency for better sterilization.
Cycle Storage and Management: USB Functionality to store over 2000 sterilization cycles.
Step Button for selecting date, month, year, and time for cycle storage.
Reduced Full Cycle Time for quicker operations.
Autoclave Design and Functionality
Triple Vacuum Cycle in a B-type front-loading design.
Drying Time Selection options: 1 min, 5 min, and default 15 min.
Multiple Sensors for precise real-time pressure and temperature monitoring.
Friendly Operation Interface for simplicity and ease of use.
3 Temperature Selections: 121°C, 134°C, and B+.
Dual Radiator Fans for fast cooling and Aluminum Foil Insulation Cotton for heat preservation.
Stainless Steel Connectors in internal parts for corrosion resistance.
Testing and Quality Assurance:
B & D Test for temperature penetration capacity checking.
Leak Test to monitor potential leakage.
Sterilization Capabilities:
Suitable for sterilizing unwrapped/wrapped, solid/hollow, porous/non-porous instruments.
B+ cycle at 134°C with an 18 min sterilization holding time.
Water Management and Sensors:
Two separate water tanks: Distilled water tank (3.5L) and Waste-water tank (5L).
Water Quality Check Sensor and Water Level Sensor in the distilled water tank.
Additional Features:
Provision to connect with an External Printer (RS232 Port).
ISO & CE Certified, ensuring quality and compliance.
Technical Specification
| Specification | Details |
|---|---|
| Autoclave Type | B type fully automatic front-loading |
| autoclave powered by triple vacuum cycle | |
| Temperature Selection | 121°C / 134°C / B+ |
| Safety Features | Double door lock system |
| Sterilization Programs | 5 programs for Solid/Hollow, Porous/Non-Porous, etc. instruments |
| Cycle Time Reduction | Reduced full cycle time |
| Qualification | Bow and Dick test qualified |
| Control Panel | User-friendly Control Panel |
| Water Tanks | 2 storage tanks for distilled and waste water |
| Data Storage | USB functioning (2000 cycles) |
| Cleaning Program | Steam generator cleaning program |
| Chamber Size | 250 mm x 450 mm |
| Vacuum Pump Level | High vacuum pump level: -92 kPa |
| Additional Feature | Optional micro printer |

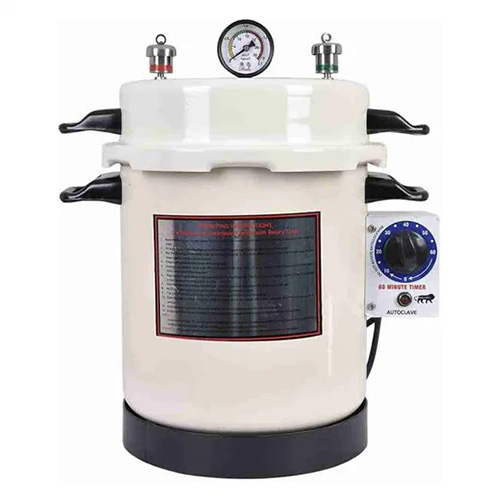

- Functionality: Designed to sterilize medical instruments
- effectively through high-pressure steam.
- Ensures thorough sterilization to eliminate
- pathogens and bacteria.
- Dressing Drum:Includes an 8" x 8" dressing drum for
- organizing and sterilizing medical dressings and
- small instruments.
